Quotation
Manufacturer
iSauna Design Kft.
- Address: 9174 Dunaszeg, Liget u. 11.
- Tel.: +36 70 362 5830
- E-mail: info@szaunagyartas.hu
- Swift: OTPVHUHB
- IBAN Eur: HU 40 1176 3378 4225 3882 0000 0000
- IBAN Huf: HU 79 1173 7007 2073 2756 0000 0000
- Date: 04.03.2026
- Contact person: iSauna Design Kft.
- E-mail: info@szaunagyartas.hu
- Tel.: +36 70 362 5830
Dear Customer!
We would like to take this opportunity and thank you for contacting us regarding your intention to purchase one or more of our products. We are convinced that you have made the right choice by selecting us as your sauna supplier. Thanks to our TUV-certified manufacturing technology, we are ready to precisely manufacture whatever unique solutions our clients dream of. We take into consideration special local features and terrain conditions and provide consultation services for our clients to help them find the solution that best suits their needs.

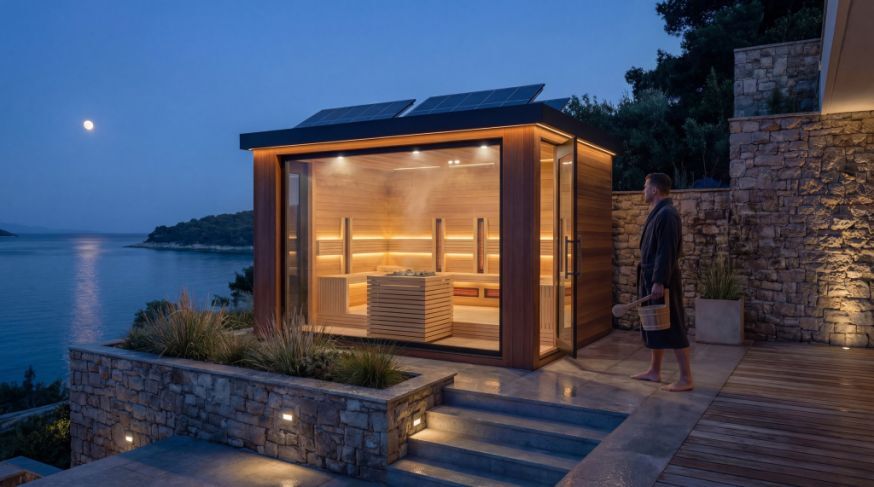

Image for illustration purposes only.
| Main features | |
| Sauna type | Lugano outdoor combi sauna |
| Number of seats | 4-6 person |
| Size | 3,65 x 2,38 x 2,56 m |
| Wall structure | ||
| Structural wood, spruce 43x145 mm |
 | |
| Alukraft aluminium heat reflection foil in wall, roof |
 | |
| Mastermax 3 classic vapor permeable / moisture barrier foil |
 | |
| Purenit frame for sauna base 2440x1220x20 mm |
 | |
| Metal screw anchor 10x120 mm |
 | |
| Rockwool Multirock 100 x 600 x 1000 mm |
 | |
| Beam system | ||
| Columns/beams | 10 x 10 cm, BSH glued beam |
 |
| Columns/beams | 10 x 16 cm, BSH glued beam |
 |
| Fastening element | Rothoblaas hidden connector for 10x16 beam |
 |
| Fastening element | Hidden T plinth for 10x10 column |
 |
| Roof structure | ||
| Structural wood, spruce 43x145 mm |
| |
| Structural wood, spruce 43x43 mm |
 | |
| Alukraft aluminium heat reflection foil in wall, roof |
| |
| Knauf ekoboard insulation 75 mm |
 | |
| Mastermax 3 classic vapor permeable / moisture barrier foil |
| |
| OSB board board size: 2500x1250x18 mm |
 | |
| Bauder Top TS40 nsk roofing felt |
 | |
| Roofbond roof aerator for outdoor saunas |
 | |
| Individual unique tin roof (RAL7016) |
 | |
| sheetmetal gutter/m (RAL7016) |
 | |
| Panelling | ||||||
| Trapezoidal or sheet metal outer cladding | Individually manufactured trapezoidal plate RAL7016 Frame color: RAL7016 |
 |
||||
| External panelling |
1st class Canadian Red Cedar panelling 15 x 98 mm, minimal U profile
|
 |
||||
| Internal panelling | 1st class Canadian Red Cedar panelling 15 x 98 mm, minimal U profile |
|
||||
| Flooring |
Professional floor layering with laminate flooring
|
 |
||||
| Sauna elements | ||||
| Benches | I. class Finnish vibrant aspen bench material design style 28x38 mm |
 |
||
| Backrest | Modern-style backrest (falling on 2 sides, standing, sharpened) (/pair) |
 |
||
| Backrest | Backrest to Finnish sauna from Finnish vibrant aspen in "design" style 38 x 28 mm |
 |
||
| Foot grid | I. class finnish vibrant aspen foot grid design style 28x38 mm |
 |
||
| Sauna heater |
HARVIA Virta Pro 16kW sauna heater
|
 |
||
| Infrared panels | Philips Vitae Dr Fischer Schott Nextrema® infrared panel (high technology) - 500W |
 |
||
| Control panel | iSauna Home smart control with touch screen front panel |
 |
||
| Drip tray | Sauna heater drip tray for Harvia sauna heater |
 |
||
| Protective frame for sauna heater | Wooden protective frame for Harvia Virta sauna heaters - short |
 |
||
| Protective frame for sauna heater | Wooden protective frame for Harvia Virta sauna heaters - long (pc) |
 |
||
| Windows and doors | ||||
| External windows and doors |
Glass door with aluminium casing
Frame color: RAL7016
|
 |
||
| External windows and doors |
Fixed glass element in unique aluminium case (2piece)
Frame color: RAL7016
|
 |
||
| Electricity | ||
| Electricity box | Complete electrical installation materials (circuit breakers, rails and main switch) |
 |
| Electricity box | Secret door for control panel in case of outdoor saunas - 20x30 cm |
 |
| Lighting | Kanlux Seidy spotlight set - 2, black |
 |
| Air ventilation | Drawable ventilation wood |
 |
| Electricity cables | Complete wiring of the outdoor sauna |
 |
| Accessories | ||
| Accessories | Minimal Headrest |
 |
| Accessories | Black Aluminum & Bamboo Sauna Set |
 |
| Extras |
Bluetooth music system (1 piece Bluetooth amplifier, 2 pieces IP-protected loudspeaker) |
 |
| Extras |
Smart application sauna control (LAN module) |
 |
| Extras |
RGBW LED mood lighting with remote control - under bench and built into backrest (up to 5 m2) |
 |
|
We have a solution for every idea, request your personalized offer! |
| Accessories, shipping, installation | The price does not include delivery and installation. Accessories are included in the price. |
| Notes | Individual drawing: yes / further measuring necessary: no |
| The customer prepares: |
| - Power supply network installation: recommended 3x400V, 3x25A, C25 circuit breaker, 6x10 silicone cable - Installation of electrical fuse board for supplying the sauna with a circuit breaker (contact protection relay / earth relay) - UTP (Cat6) cable for LAN module, cable ends with RJ45 connector; - Obtaining any notification requirements, building permits - Prepare a concrete foundation as recommended - Providing parking for the truck - Ensure unobstructed access to the site (possibly with a crane) - Providing garbage container occasionally - In order to ensure the proper operation of the control application, the Customer is obliged to ensure the technical conditions for the connection to the home network and to use the assistance of a specialist for the connection. In the event of failure to do so, iSauna Design Kft. shall not be liable for the proper functioning of the application. |
| Payment schedule and shipping | ||
| By order | 50% | money transfer |
| By handover in the manufacture | 40% | money transfer |
| By installation on site | 10% | money transfer |
| Delivery deadline | 60-90 days from order date | |
|
Warranty: -Outer construction: 5 years -Control unit, heat sensor: 1 year -Philips Vitae / Dr. Fischer Infrared heater: 5 years producer warranty -Harvia sauna oven: 2 years producer warranty -Painting: 6 months If the product delivery/installation does not take place until the 30th day after the delivery deadline for reasons attributable to the client, the client is obligated to pay 50 EUR + VAT/day starting the 31st day as a contractual penalty. The producer reserve its right to check the legality of the warranty claim. The producer has the possession rights of the product until the total payment fulfilment. The Hungarian VAT is 27%. The photos in the cost estimate are illustrations. We do not provide warranty in case of damages: -caused by non-proper purpose -caused by a non-proper maintenance -caused by power fluctuations, direct or indirect nature catastrophes -caused by a non-proper installation, maintenance or external impacts, if the installation is not done by the iSauna Design Kft. GDPR Information: We use your personal data (name, address, phone number, e-mail address) in the cost estimate in accordance with par. 1/b art. 6 2016/679 of the EU-Regulation. Upon request, we delete your personal data. In this case, please send us a mail containing the reason for recall to info@szaunagyartas.hu. The iSauna Design Kft. cannot take any responsibility during the existence of this contract for service changes or contract failures caused by COVID or state of war. In those vis major cases the iSauna Design Kft. reserves the right to contract termination. | ||
