Standard sauna house quotation
Manufacturer
iSauna Design Kft.
- Address: 9174 Dunaszeg, Liget u. 11.
- Tel.: +36 70 362 5830
- E-mail: info@szaunagyartas.hu
- Swift: OTPVHUHB
- IBAN Eur: HU 40 1176 3378 4225 3882 0000 0000
- IBAN Huf: HU 79 1173 7007 2073 2756 0000 0000
- Date: 27.02.2026
- Contact person: iSauna Design Kft.
- E-mail: info@szaunagyartas.hu
- Tel.: +36 70 362 5830
Dear Customer!
We would like to take this opportunity and thank you for contacting us regarding your intention to purchase one or more of our products. We are convinced that you have made the right choice by selecting us as your sauna supplier. Thanks to our TUV-certified manufacturing technology, we are ready to precisely manufacture whatever unique solutions our clients dream of. We take into consideration special local features and terrain conditions and provide consultation services for our clients to help them find the solution that best suits their needs.

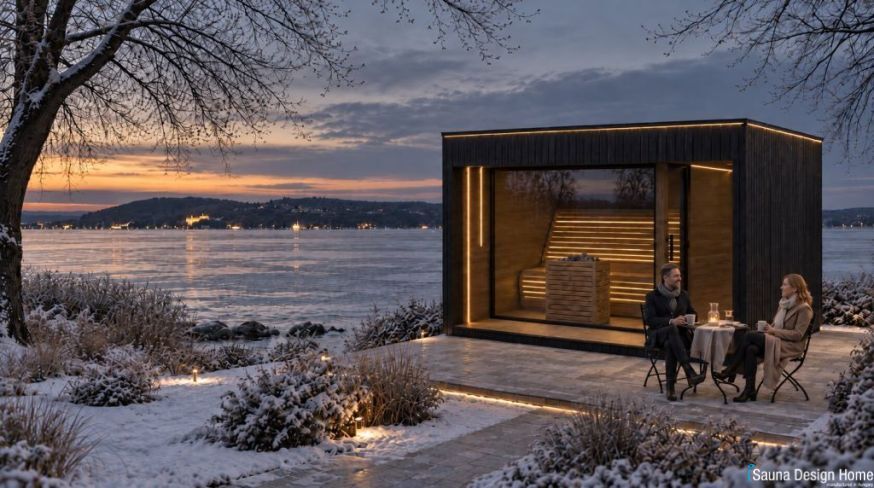

Image for illustration purposes only.
| Main features | |
| Sauna type | Custom-built outdoor sauna |
| Number of seats | 2–5 persons |
| Size | 4,04 x 3,26 x 2,61 m |
| Wall structure | ||
| Structural wood, spruce 43x145 mm |
 | |
| Alukraft aluminium heat reflection foil in wall, roof |
 | |
| Mastermax 3 classic vapor permeable / moisture barrier foil |
 | |
| Purenit frame for sauna base 2440x1220x20 mm |
 | |
| Metal screw anchor 10x120 mm |
 | |
| Rockwool Multirock 100 x 600 x 1000 mm |
 | |
| Structural wood, spruce 43x190 mm |
 | |
| Rockwool Multirock 150 x 600 x 1000 mm |
 | |
| Beam system | ||
| Columns/beams | 10 x 10 cm, BSH glued beam |
 |
| Columns/beams | 10 x 16 cm, BSH glued beam |
 |
| Fastening element | Rothoblaas hidden connector for 10x16 beam |
 |
| Fastening element | Hidden T plinth for 10x10 column |
 |
| Fastening element | Hidden T plinth for 10x16 column |
 |
| Roof structure | ||
| Structural wood, spruce 43x145 mm |
| |
| Structural wood, spruce 43x43 mm |
 | |
| Alukraft aluminium heat reflection foil in wall, roof |
| |
| Knauf ekoboard insulation 75 mm |
 | |
| Mastermax 3 classic vapor permeable / moisture barrier foil |
| |
| OSB board board size: 2500x1250x18 mm |
 | |
| Bauder Top TS40 nsk roofing felt |
 | |
| Roofbond roof aerator for outdoor saunas |
 | |
| Individual unique tin roof (RAL7016) |
 | |
| sheetmetal gutter/m (RAL7016) |
 | |
| Panelling | ||||||
| Trapezoidal or sheet metal outer cladding | Individually manufactured trapezoidal plate RAL7016 Frame color: RAL7016 |
 |
||||
| External panelling |
1st class Canadian Red Cedar panelling 15 x 98 mm, minimal U profile
|
 |
||||
| Internal panelling | 1st class Canadian Red Cedar panelling 15 x 98 mm, minimal U profile |
|
||||
| Flooring |
Professional floor layering with vinyl flooring
|
 |
||||
| Water block | Wet room osb+drywall |
 |
||||
| Sauna elements | ||||
| Benches | Ergonomic design flooring made of first-class Canadian red cedar |
 |
||
| Sauna heater |
HARVIA Virta Pro 13,5kW
|
 |
||
| Control panel | iSauna Home smart control with touch screen front panel |
 |
||
| Control panel | Magnetic switcher |
 |
||
| Drip tray | Sauna heater drip tray for Harvia sauna heater |
 |
||
| Protective frame for sauna heater | Wooden protective framein, minimal design, for sauna heaters |
 |
||
| Windows and doors | ||||
| External windows and doors |
Glass door with aluminium casing
Frame color: RAL7016
|
 |
||
| External windows and doors | 6 mm safety, heat-insulated, with spacers, gas, water clear |
 |
||
| Electricity | ||
| Electricity box | Steel plate joint-box 600x500x150 mm, IP66 |
 |
| Electricity box | Eaton main switch IP65 |
 |
| Electricity box | Complete electrical installation materials (circuit breakers, rails and main switch) |
 |
| Lighting | Kanlux Seidy spotlight set - 2, black |
 |
| Lighting | Neutral white COB LED strip for outdoor use with power supply, switchable 5 m |
 |
| Switch, Connector, Switch | Schneider Electric Asfora - switch, 1pole, anthracite, with frame |
 |
| Switch, Connector, Switch | Schneider Electric Asfora - Socket 2P+F, outdoor, complete, 1-gang, anthracite |
 |
| Air ventilation | Drawable ventilation wood |
 |
| Electricity cables | Speaker cable 2x2.5 |
 |
| Electricity cables | Complete wiring of the outdoor sauna |
 |
| Accessories | ||
| Accessories | Bluetooth music system (1 piece Bluetooth amplifier, 2 pieces IP-protected loudspeaker) |
 |
| Accessories | Smart application sauna control (LAN module) |
 |
| Accessories | Magnum heat board underfloor heating under parquet - 5 m2 |
 |
| Accessories | Black Aluminum & Bamboo Sauna Set |
 |
| Accessories | Thermowood ash decking board |
 |
|
We have a solution for every vision, request your personalized offer! |
| Accessories, shipping, installation | The price does NOT include delivery and installation. The price includes the accessories. |
| Notes | Individual drawing: yes / further measuring necessary: no |
| The customer prepares: |
| - Installation of the electrical supply network: recommended 3×400 V, C20 circuit breaker, 3×20 A current rating, 5×4 silicone cable - Installation of a dedicated electrical distribution board for the sauna with residual current device (RCD / FI relay) - UTP (Cat6) cable for the LAN module with RJ45 connectors at the cable ends - Tiling of the shower walls and floor, provision of a qualified professional - Procurement and installation of shower sanitary fixtures and shower drain channel - Provision of plumbing works - Obtaining any required notifications and building permits - Construction of a concrete foundation according to recommendation - Ensuring parking space for a truck - Ensuring barrier-free access to the site (provision of a crane if necessary) - Provision of a waste container if required - In order to ensure the proper operation of the control-related application, the Customer is obliged to provide the technical conditions for connection to the home network and must engage a qualified professional to establish the connection. In the absence of this, iSauna Design Kft. assumes no responsibility for the proper functioning of the application. |
| Payment schedule and shipping | ||
| Upon order | 50 % | Bank transfer |
| Upon handover at the manufactory | 40 % | Bank transfer |
| Upon installation | 10 % | Bank transfer |
| Delivery deadline | 90-120 days from order date | |
|
Warranty: -Structural framework (external structure): 5 years -Control unit, temperature sensor: 1 year -Manufacturer’s warranty for Harvia stoves: 2 years -Painting/coating: 6 months The warranty does not cover: -Damage resulting from improper use -Damage due to lack of maintenance -Failures caused by voltage fluctuations or direct/indirect natural events -Parts subject to replacement due to natural wear and tear -Damage resulting from installation or commissioning not performed by us, or from improper installation, repair, or other external intervention If installation/collection of the product does not take place by the 30th day after the delivery deadline due to the buyer’s fault, the buyer shall pay a penalty of HUF 20,000 + VAT per day starting from the 31st day. The manufacturer reserves the right to assess the validity of any warranty claim. The product remains the property of the manufacturer until full payment of the invoice. Hungarian VAT is 27%. Photos included in the quotation are for illustrative purposes only. GDPR Notice: During the preparation of the quotation, we process our clients’ data (name, address, phone number, email address) pursuant to Article 6(1)(b) of Regulation (EU) 2016/679. Upon request, the stored data will be deleted. Such request may be submitted – with proper identification – by email (info@szaunagyartas.hu) or in other written form. iSauna Design Kft. – www.szaunagyartas.hu In the event of contract conclusion, we cannot assume liability for any modification or non-performance caused by COVID or war-related circumstances. In such cases of force majeure (Vis Major), we reserve the right to withdraw from the contract. | ||
